Volumetric LED screen rental in Moscow
A volumetric screen forms its image in three dimensions. The matrix of LED strings sits at different depths rather than on a single plane, so the content has real depth and reads from any angle without special glasses.
Official partner of LedPulse in Russia
As an exclusive partner of LedPulse, one of the world leaders in the production and experience of using volumetric LED screens, we get access to advanced developments and adapt them for complex projects.
How the screen is built
The structure is modular, so the screen is assembled to fit the venue: a stage, an exhibition space, a presentation, a concert, a festival, a corporate event or a brand activation. Shape and size come from the set of modules rather than from a fixed catalogue.

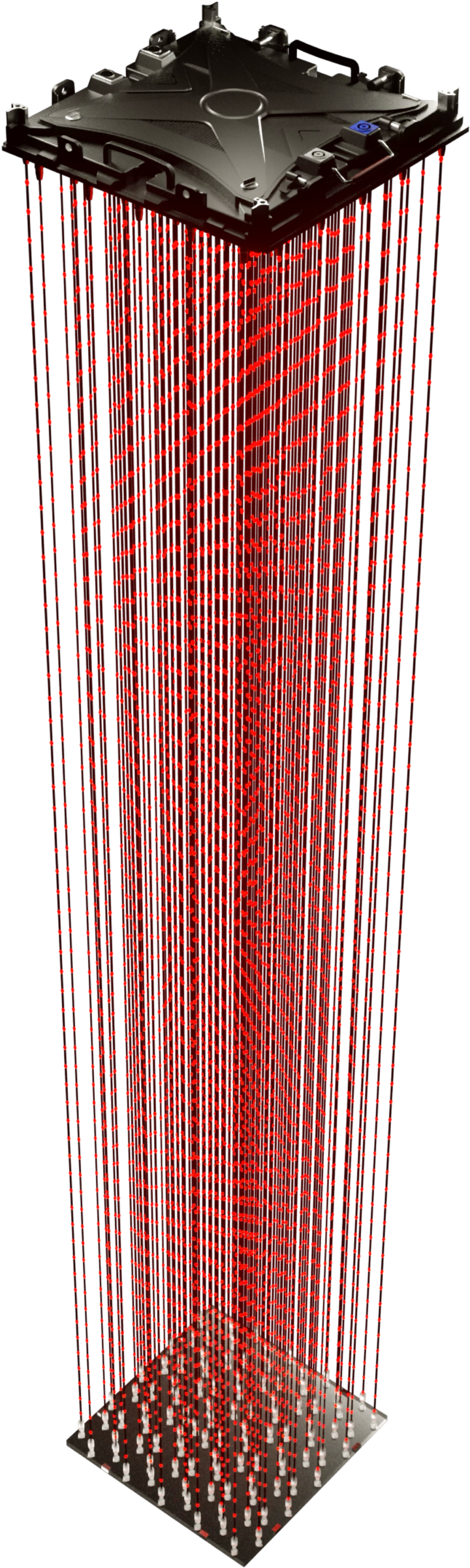

A module consists of a cabinet holding the electronics, the LED strings and a bottom plate. LED strings with per-pixel control produce animation, waves of light, volumetric imagery and holographic effects in sync with music and video.
DragonO² features
- High frame rate
- Fast microprocessor
- Flawless color balance
- Self-addressing
Module specification
DragonO² is a volumetric LED module made by LedPulse.
- Overall dimensions
- 500 × 500 × 3100 mm
- Cabinet
- 500 × 500 × 100 mm
- LED string
- 3000 mm · 100 pcs
- Voxels, NEURON LEDs
- 6000 pcs
- Voxel distribution
- 2.5 cm
- Power consumption
- 400 W
- Weight
- 17 kg
- Power
- Standard PowerCon
- Signal
- Standard Ethernet
LED string specification
- Length
- 3000 mm
- Voxels, NEURON LEDs
- 60 pcs
- Voxel distribution
- 5 cm
- Material
- copper
- Insulation
- PVC
Patented technology: the neural LED
The DragonO² neural system is a unique patented revolutionary technology where information travels through an electrical current encrypted in binary code. Each microprocessor interprets that information and translates it into RGB light pulses. Each neuron interprets the information independently. The conjunction of all neurons forms the three-dimensional image.

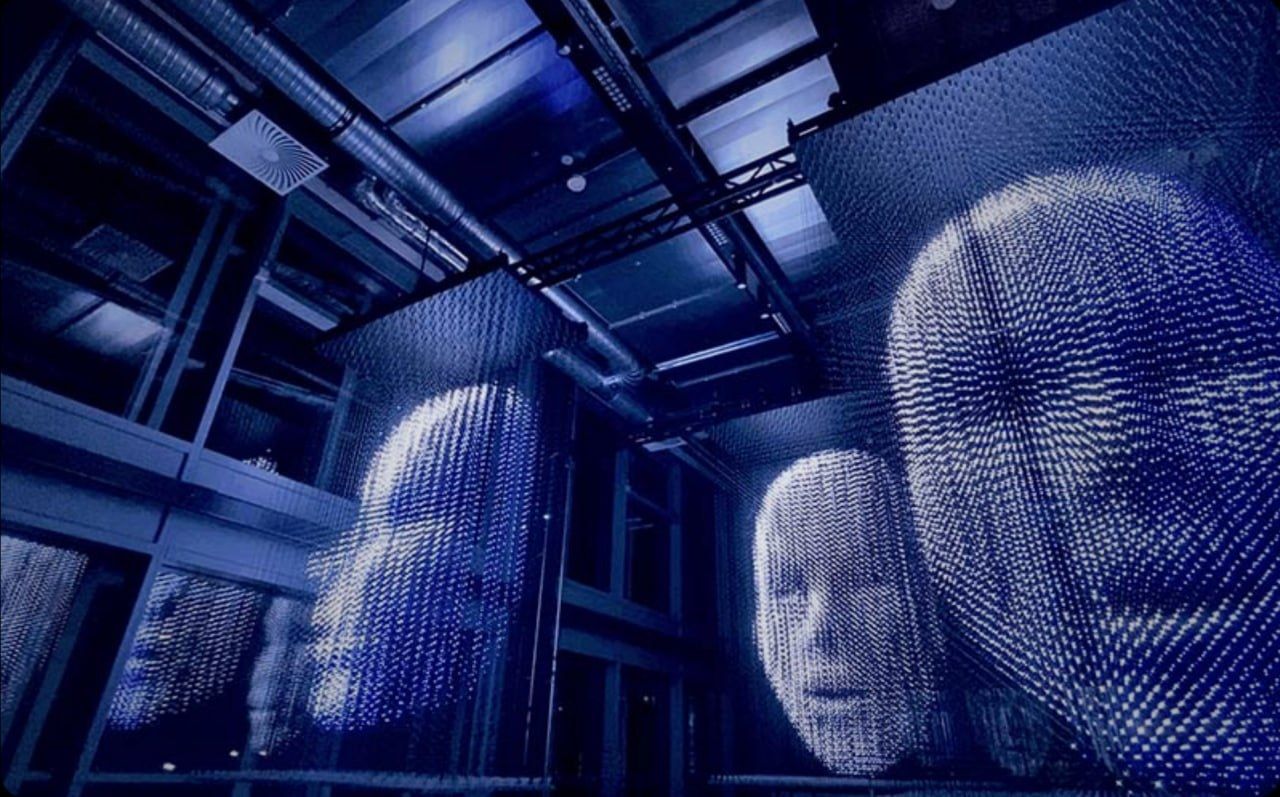

Our projects on volumetric screens
- ECHO 2.0audiovisual installation on a volumetric screen
- INTERVALS 2023installation at an international media arts festival
- FINOPOLIS 2022 · T1multimedia booth at a financial forum
- PRE-EVENT OUTLINE 202542 modules at the ARMA venue
- LADA VESTA SW CROSS3D visualization for the booth media screens
